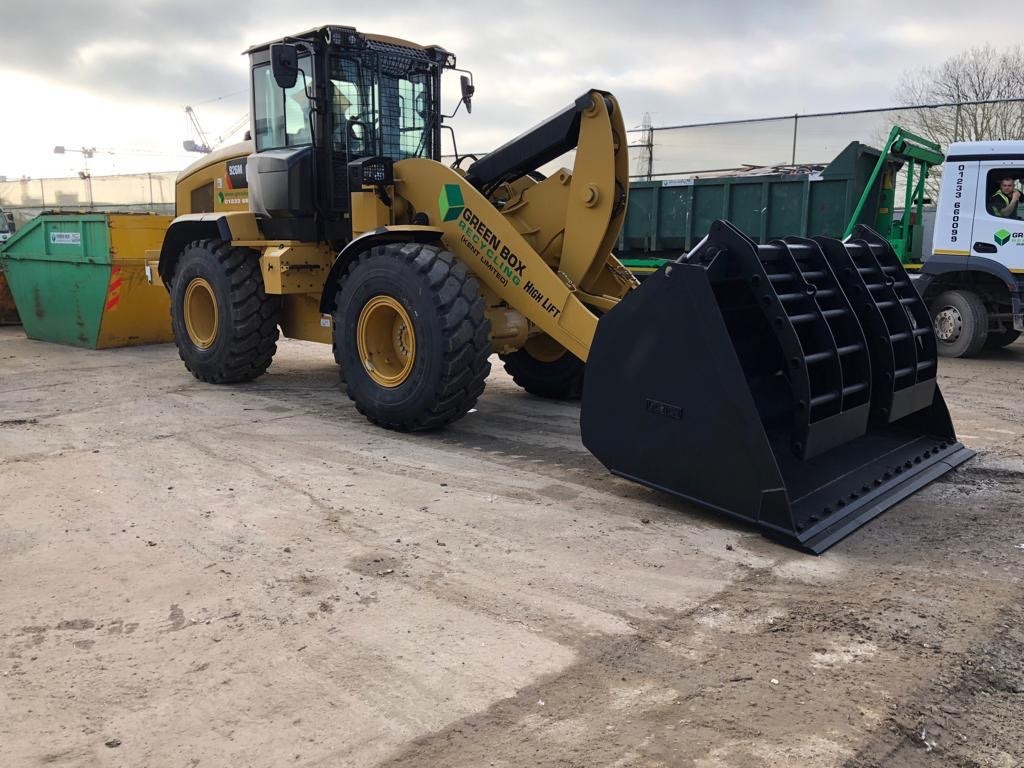

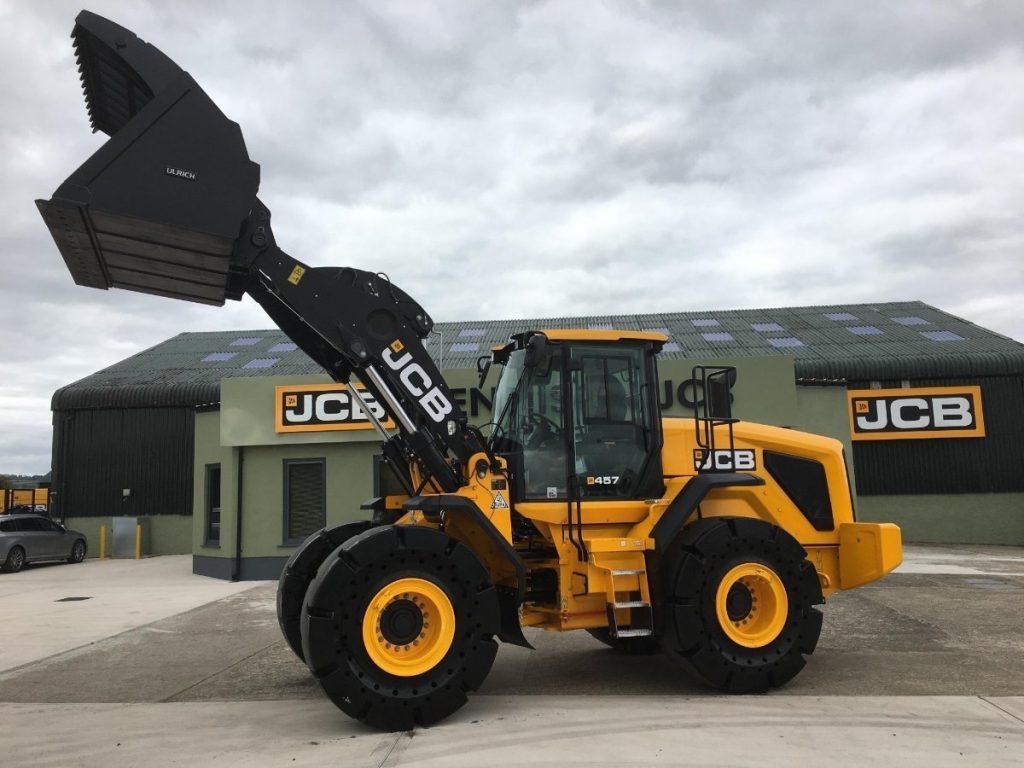

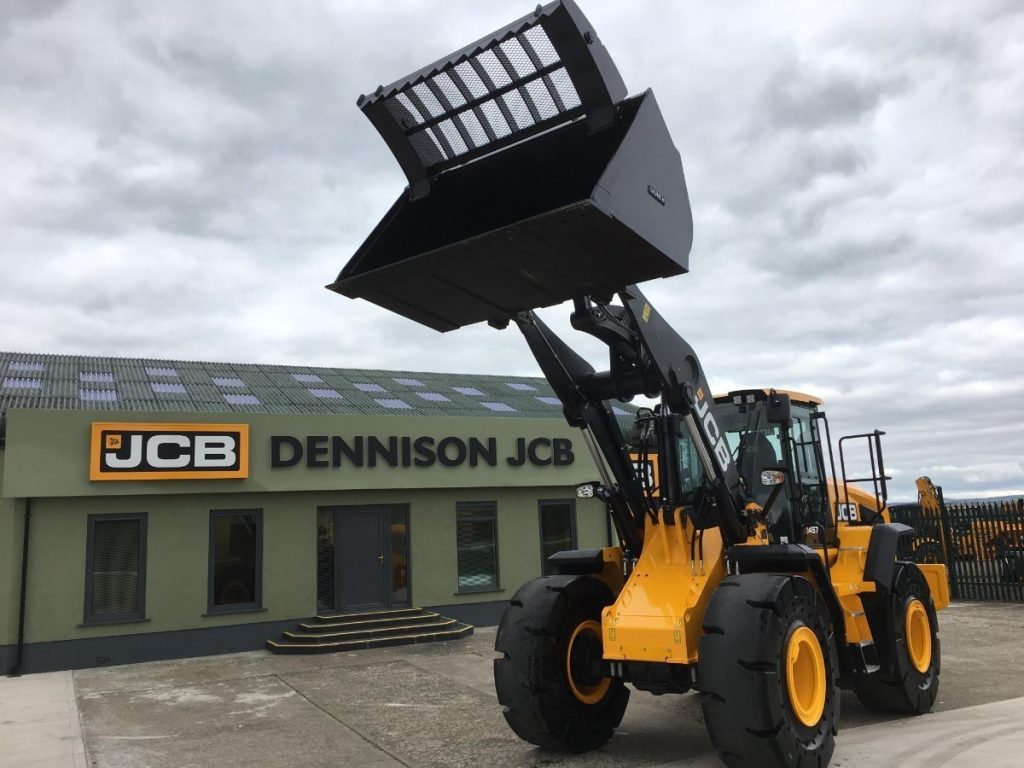

Refuse Top Clamp Bucket
Ulrich Attachments manufactures a range of Refuse Clamp Buckets to suit all OEM Wheeled Loading Shovels and Telehandler machinery. The refuse clamp is a dedicated attachment for handling waste and similar materials and can be supplied with multiple clamp options from a ¾ width, full depth clamp both single and twin versions, to a HD serrated style with integrated cylinders and full length, full width coverage style.rnu003ch5u003eEnquire now to receive a quote for an Ulrich Refuse Clamp Bucketu003c/h5u003e
About Ulrich Refuse Clamp Buckets
Ulrich Refuse Clamp buckets are carefully designed to offer a capacity that suits the wheeled loading shovel capabilities and the material it will be handling. The more accurate capacity will increase productivity and save time. Our standard specification is manufactured from high tensile steel with 450/560 Brinell Hardness steel wearing parts. Ulrich also produces full heavy-duty versions of the Refuse Clamp bucket range for specific applications. The heavy-duty refuse clamp buckets are manufactured from 1250N/mm² tensile, 1000N/mm² yield steel.
Designed to last within the harshest environments the Ulrich offering starts from a 1.5m³ and can be supplied up to a 3.0m³ capacity. The Refuse clamp bucket can be produced to suit both fitting options direct and quick coupler mounted and can be supplied with up to 5 years warranty.
| Capacity (m³) | Gross Weight (kg) | Recommended Telehandler (tonnes) | Single Clamp | Twin Clamp |
|---|---|---|---|---|
| 1.5m³ | 900kg | 3 | ||
| 2.0m³ | 1,300kg | 4 | ||
| 2.5m³ | 1,350kg | 5-6 | ||
| 3.0m³ | 1,500kg | 6 |
Refuse Clamp Bucket Manual
Refuse Clamp Bucket
The Ulrich Refuse Clamp Bucket is mounted directly to the existing lift arms of the loader or via a quick coupler bracket.
Download PDF
